Part No.: FT-04304
TFT Type: 4.3 inch TFT LCD Display/ 4.3” IPS TFT
Resolution: 480*272 dots
Viewing Direction: ALL
Interface: Parallel RGB
Driver IC: ST7283
Luminance: 400 cd/m²
Metal Frame: with front and rear metal Frame
Touch Screen: with RTP touch
Item No :
FT-04304Product Details:
FT-04304 is the popular size 4.3 inch TFT display, of resolution 480(RGB)×272, WQVGA. It is landscape type with aspect ratio of 4:3. For mechanical detail, this 4.3” TFT model is having module outline dimension of 104.80 x 66.50mm and active area size of 95.04 x 53.86mm.
This 4.3 inch TFT LCD display module is recommended in the following: IPS type, with RTP touch, and 2 in 1 FPC. This module is built-in driver IC ST7283, supports Parallel RGB interface. It integrates the FPC of the RTP touch screen into the TFT's FPC, and the final output is 40pin FPC. This design make this 4.3 inch TFT LCD Display easy assembly process for customers, as they only need to connect one FPC to complete the installation of both the display and touch screen, and the ZIP-type FPC connector also facilitates easy insertion and removal. Additionally, this 4.3” IPS TFT is with perfect full viewing angle and high contrast ratio up to 800:1, suitable to be applied to Industrial, Portable Navigation, MP3 PMP and other fields requires wide viewing angle and high contrast.

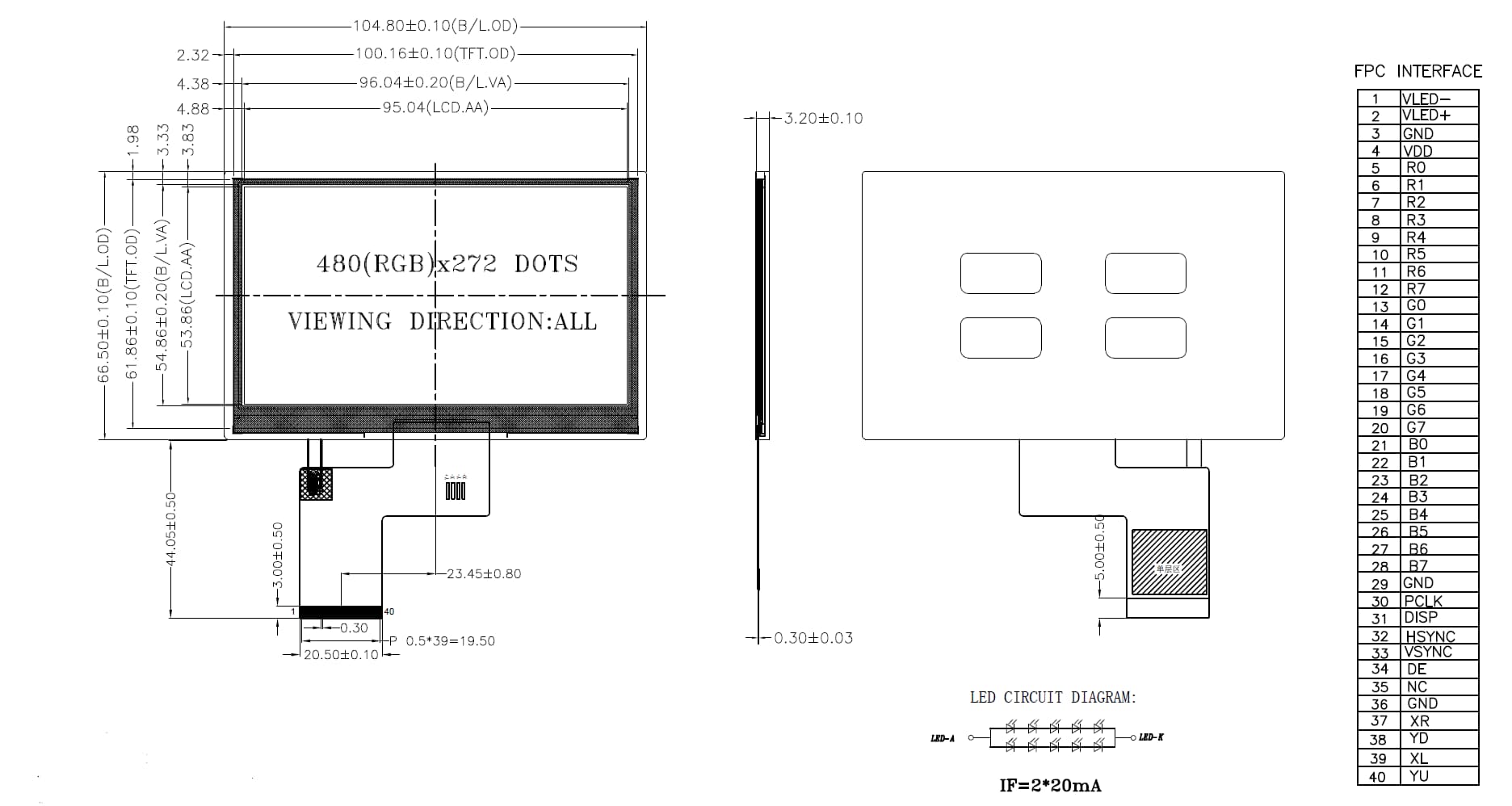

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-04304 |
| 2 | LCD Size | 4.3 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 480(RGB)×272, WQVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 95.04 x 53.86mm |
| 6 | Module Dimension | 104.80 x 66.50 x 3.20mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| 9 | Contrast | 800:1 (Typ.) |
| 10 | Luminance | 400 cd/㎡ |
| 11 | Backlight | 10 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | With RTP touch |
We Shengfeng understand different customers or projects might have diverse requirements. If this 4.3 inch TFT display #FT-04304 is cannot meet the customer's needs, we can provide customized services tailored to their specific requirements.
The customized service includes:
We Shengfeng have 2 types of 4.3 inch TFT LCD, of different resolution 800 x 480, or 480 x 272 dots and different specification. If the customer wants to know more details about this 4.3” IPS TFT, please contact us freely.
Application:
