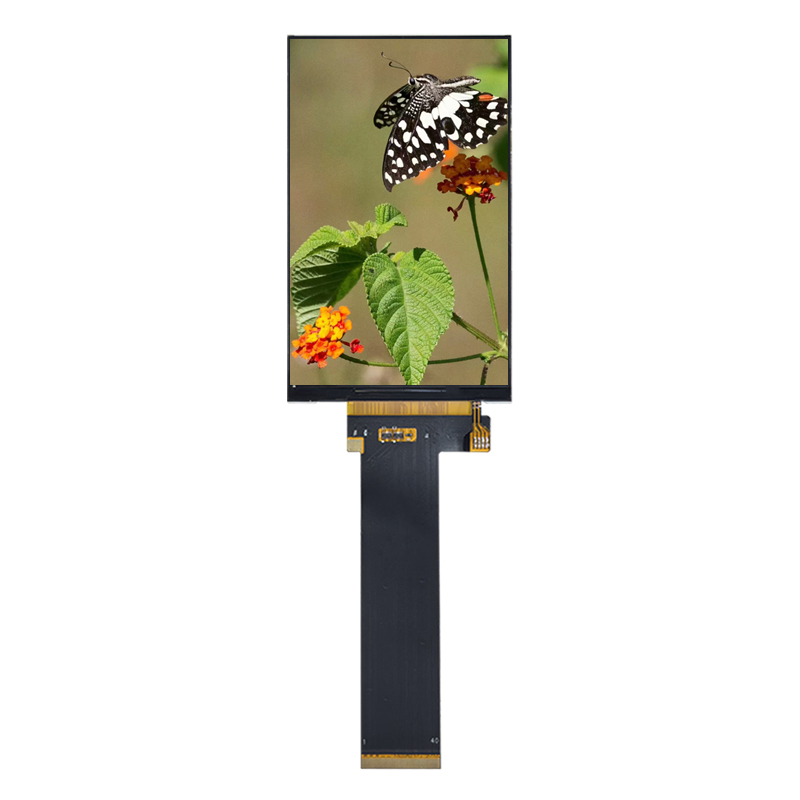

3.2 inch TFT LCD 240*320 resolution full viewing angle ST7789VI High Brightness 700cd/m²

3.2 Inch TFT LCD Display

3.2 inch TFT LCD 240*320 resolution full viewing angle ST7789VI High Brightness 700cd/m²

Part No.: FT-03212

TFT Type:  3.2 inch TFT LCD/3.2 inch IPS TFT LCD

Resolution:  240*480 dots

Viewing Direction:  All

Interface:  4-SPI

Driver IC: ST7789VI

Brightness: 700 cd/m²

Metal Frame: without metal frame

Touch Screen: without touch





  • Item No :

    FT-03212
Inquiry now

FT-02823, the 3.2 inch IPS TFT LCD module, is of portrait mode featuring a 3:4 aspect ratio and a resolution of 240*320, delivers exceptional display performance across various applications, including industrial equipment, handheld testing instruments, beauty devices, smart homes, and consumer electronics..



Product Drawing：

3.2 inch IPS TFT LCD



Product Specification:

No. Item TFT LCD SPECIFICATION
1 Part No. TF-03212
2 LCD Size 3.2 inch IPS TFT LCD module
3  Resolution (Pixels) 240(RGB) × 320,
4 Display Mode IPS, Normally Black, Transmissive
5 Active Area 48.6 x 64.8mm
6 Module Dimension(with RTP) 55.94x77.60x2.50mm
7 Viewing Direction ALL
8 Viewing Angle 80/80/80/80(U/D/L/R)(CR≥10)
9 Contrast 1200:1 (Typ.)
10 Luminance 700 cd/㎡
11 Backlight 5 CHIP LED White，
12 Surface Treatment Anti-Glare
13 Temperature Range Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
14 Touch Screen Without touch screen



Product Feature:



  • High Resolution:  With a resolution of 240*320, the 3.2 inch TFT display offers intricate image rendering to ensure crisp and clear visuals.
  • Wide Viewing Angles:  IPS TFT technology supports full viewing angle, maintaining consistent colors and brightness from any angle.
  • High Brightness:  The surface brightness reaches up to 700 cd/m², making this 3.2 inch sunlight readable TFT LCD suitable for various lighting conditions and ensuring clear visibility even in outdoor bright environments.
  • Flexible Interfaces:  The module supports a 4-SPI interface for easy connection with multiple controllers, simplifying design and integration.
  • Thin Module: The 3.2 inch TFT module has an overall thickness of only 2.50mm, making it ideal for applications with limited installation space.



The model #FT-03212 is our existing standard 3.2 inch TFT LCD module. For specifications and samples of this product, please contact us, and we will be delighted to serve you.

Besides, our company also offers customization services based on customer requirements, including mold development (with options to modify backlight, FPC, touchscreen, etc.), and supports small order quantities and long-term supply..



Applications:



This 3.2 inch TFT LCD screen is widely applicable in:

-Industrial Equipment: Provides real-time data monitoring and operational interfaces to enhance work efficiency.

-Handheld Testing Instruments: Facilitates operation and data display to meet various testing needs.

-Beauty Devices: Offers users a clear interface and intuitive operating experience.

-Smart Home Applications: Enhances interactivity and visualization of smart home products.

-Consumer Electronics: Perfectly adapts to various electronic products, improving user experience.



Hot Tags : 3.2 inch TFT LCD screen 3.2 inch TFT LCD 240*320 3.2 inch IPS TFT LCD 3.2 inch sunlight readable TFT LCD 3.2" TFT LCD 3.2 inch TFT display
