240*320 QVGA 2.0 Inch TFT LCD Touch Display

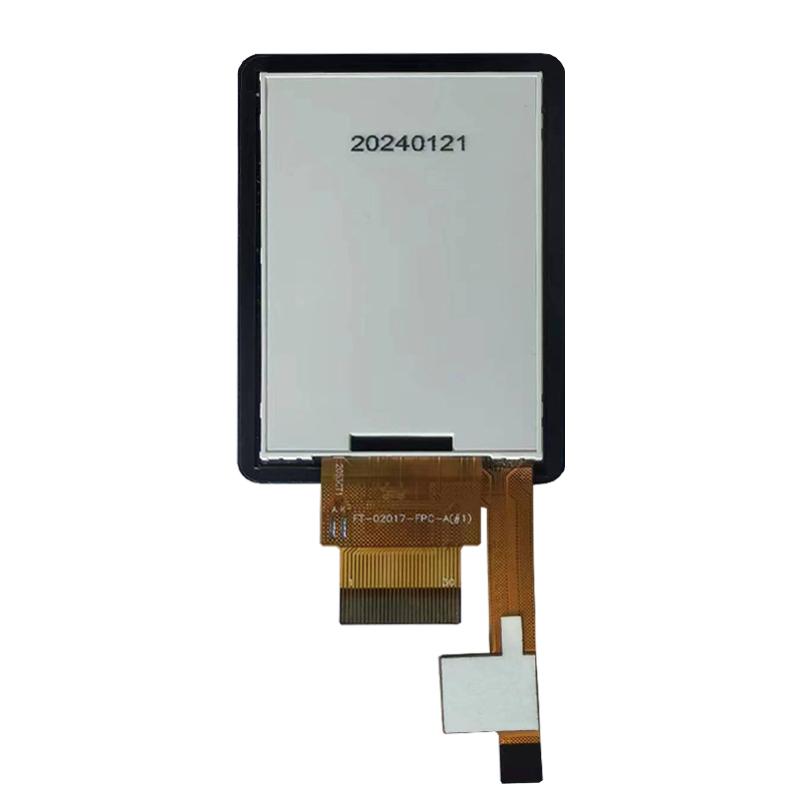

FT-02017 is a 2.0 inch TFT LCD display, of resolution 240xRGBx320, QVGA, it is portrait mode with aspect ratio of 3:4. For mechanical detail, this 2.0 inch TFT LCD Display is having active area size of 30.60 x 40.80mm and the module outline dimension of 42.20 x 57.80 x 4.08mm, with touch screen. This is 2.0” IPS TFT, is featured with all view direction as 85/85/85/85 (L/R/U/D), and high contrast up to 1000:1. This 2.0 inch TFT LCD display is built-in with driver IC ST7789V, supporting CPU interface connected by 30pin back-side FPC.

This is 2.0 inch touch display. The module is equipped with CTP touch screen, OCA optical bonding between touch sensor and TFT panel surface, plus the SCA optical bonding between cover lens and touch screen. The whole touch display module achieve a perfect all-black appearance effect when power off.

Product Advantages:

High Resolution: The small size 2 inch TFT LCD display is of 320x240 dots.

Wide Viewing Angle: The 2.0” IPS TFT LCD, boasts a full viewing angle of up to 85 degrees.

High Contrast: It is coupled with a high contrast ratio of 1000:1

Touch Function: It is 2.0 touch display module, integrated with a capacitive touchscreen.

Wide Temperature: The wide operating temperature range of -20~70℃, suitable for commercial and industrial applications.

Product Specification:

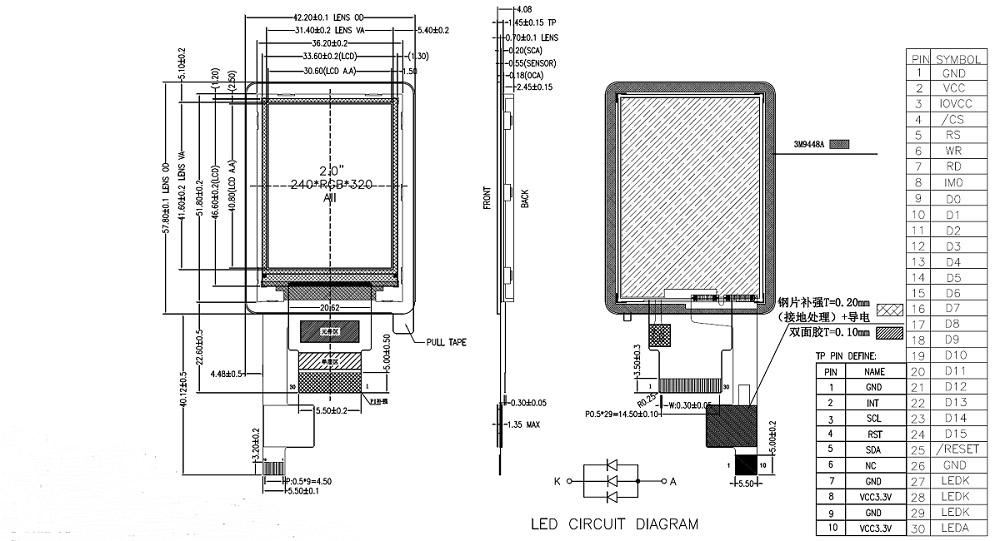

Product Drawing：

Applications:

The model#FT-02017, 2.0 inch TFT LCD module with small size but high resolution, wide viewing angle, high contrast ratio, touchscreen function, and wide temperature range. It finds extensive applications in various fields, including industrial control, medical equipment, and portable entertainment devices and other application.

• Industrial Control: Thanks to its compact size, high resolution, and stability, this 2.0 inch TFT LCD is widely used in industrial control panels, monitoring equipment, and instrumentation.
• Medical Equipment: such as patient monitors, medical imaging devices, and handheld medical devices, this 2.0 inch touch display offers clear and accurate image and data display, supporting doctors in diagnosis and treatment.
• Portable Devices: Its lightweight, power-saving, and excellent display quality make this 2.0 inch TFT LCD an ideal choice for portable electronic devices like portable game consoles, and smart handheld devices.
• Automotive Industry: This 2.0 inch IPS TFT LCD is suitable for automotives dashboard or rearview camera.
• Smart Home: this 2.0 inch touch display module is fit to be applied to smart door locks, smart thermostats, and control panels for smart home appliances.
• Inspection Devices: In engineering inspections, safety patrols, and instrument maintenance, this 2.0 inch TFT LCD can display real-time data and images, helping personnel quickly understand equipment status and work progress.
• Portable Entertainment Devices: This 2.0 inch touch display is also widely used in MP3 players, portable game consoles, and entertainment equipment, providing users with a rich and colorful entertainment experience.
